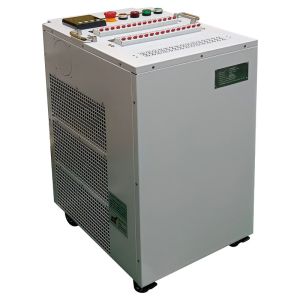

6KW Capacitive Load AC230V Suitable For Industrial Power Supplies

  • 1
  • 2
  • 3

Brand Name : JINAHONG

Model Number : JH-RC-6KWA230-W15K

Certification : CE

Place of Origin : China

MOQ : 1

Price : $700-$800

Payment Terms : T/T

Delivery Time : 25-30 work days

Packaging Details : Wooden box

Rated power : R:6KW C:6KVar

Rated voltage : AC230V

Auxiliary power supply : AC230V

IP Class : IP 20

Power factor : 0.55-1 Adjustable

Minimum step : R:1W C:1Var

Contact Now

6KW Capacitive Load Suitable For Industrial Power Supplies And New Energy

Product Features


This load bank is specially designed for simulating capacitive loads in AC power supplies, supporting high-precision capacitive power simulation. It can be used to test the performance indicators of AC power supplies, inverters, power modules, UPS and other equipment.


The maximum output power reaches 6 kilowatts, which can meet the testing requirements of medium-sized electronic and power equipment.

Product parameters

Model number JH-RC-6KWA230-W15K
Brand Jianhong
dimension ≤400*550*770MM(L*W*H)
weight ≤50KG
Rated voltage AC230V
Rated power R:6KW C:6KVar
Auxiliary power
supply		 AC230V
Power factor 0.55-1 Adjustable
Resistance
accuracy		 ±3%
(High precision, small volume, ultra-light resistance is used in the load bank)
Cooling system Forced air cooling, forward and back out
Working
environment		 Working temperature: -10~50℃, dry, well ventilated
Control mode Manual circuit breaker control
IP level IP20(Indoor environment)
Display mode Display load voltage, current, active power, reactive power,
apparent power, frequency, power factor, etc. (switching)
Power rating R:1W,2W,2W,5W,10W,20W,20W,50W,100W,200W,200W,500W,1KW,2KW,2KW
(Use in superposition)
C:1Var,2Var,2Var,5Var,10Var,20Var,20Var,50Var,100Var,
200Var,200Var,500Var,1KVar,2KVar,2KVar
(Use in superposition)
Apparent power
stepping accuracy		 25VA
Load
specification		 The required power and power factors are matched by manually combining R-load and C-load
Load protection High temperature alarm, fault alarm, emergency stop, sound and
light prompt, working status indication
Load connection
mode 		Thread terminal
Auxiliary power
connection mode		 Standard electrical outlet
Working mode Continuous online work, 7*24 working system, resistance life
of 15 years
Moving mode castor

Application fields


Power supply equipment testing: Verify the power supply voltage regulation performance and load response capability to ensure they meet the design requirements.


Inverter commissioning: Simulate complex capacitive loads to test the performance and stability of the inverter.


UPS performance verification: Test the output capacity and efficiency of the UPS under different capacitive loads.


Electronic equipment research and development: Provide precise capacitive loads for electronic components and modules to assist in optimizing design.
